IRON MAKING
Hot metal (molten pig iron) making in an integrated steel plant is the core step where iron ore, coke, and fluxes are transformed inside the blast furnace into liquid iron containing ~4–5% carbon and impurities. This hot metal is then refined in the Basic Oxygen Furnace (BOF) to produce steel.
Overview of Hot Metal Making
Hot metal making is the ironmaking stage of an integrated steel plant. It converts raw materials into molten pig iron, which serves as the primary input for steelmaking.
- Raw Materials: Iron ore (sinter/pellets), coke (from coking coal), and fluxes (limestone, dolomite).
- Core Unit: Blast Furnace (BF) operating at ~2,000°C.
- Output: Molten pig iron (hot metal) with ~4–5% carbon, silicon, manganese, sulphur, and phosphorus.
Raw Materials preparation
Iron ore, coal, and fluxes are processed before charging and Layered burden of coke, ore, and fluxes is charged from the top.
- Coking: Coal heated without oxygen → porous coke provides heat and reducing gases
- Lump Ore , Sinter & Pellet (Iron ore fines agglomerated for permeability) supplies iron oxides.
- Fluxes: Limestone/dolomite prepared to capture impurities as slag.
Hot air blast through tuyeres ignites coke, forming CO gas.
- Combustion zone reaches ~2000°C
- CO reduces Fe₂O₃ → Fe
- Reduction Reaction:
- Heat melts ore into liquid iron

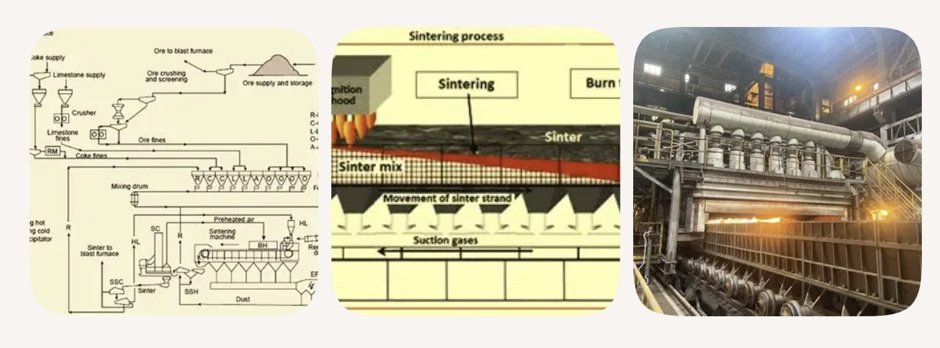

Sinter Plant
Sintering converts a mixture of fine iron ore, return fines, fluxes and solid fuel into porous, mechanically strong agglomerates suitable for blast furnace charging.
The major stages include:
Raw Material Proportioning
↓
Mixing & Granulation
↓
Sinter Machine Charging
↓
Ignition
↓
Sintering
↓
Cooling
↓
Screening
↓
Sinter Product Handling
↓
Return Fines Recycling
The sintering process improves the suitability of fine iron-bearing materials for blast furnace operation by producing a controlled-size agglomerated burden.
Pellet Plant
Pelletizing converts fine iron ore concentrate into relatively uniform pellets suitable for use in iron making.
Typical stages include:
Concentrate Preparation
↓
Grinding / Conditioning
↓
Additive Addition
↓
Mixing
↓
Green Pellet Formation
↓
Screening
↓
Induration
↓
Cooling
↓
Product Screening & Handling
↓
Pellet Storage
Pellet quality is influenced by parameters such as chemical composition, pellet size, strength and reducibility.

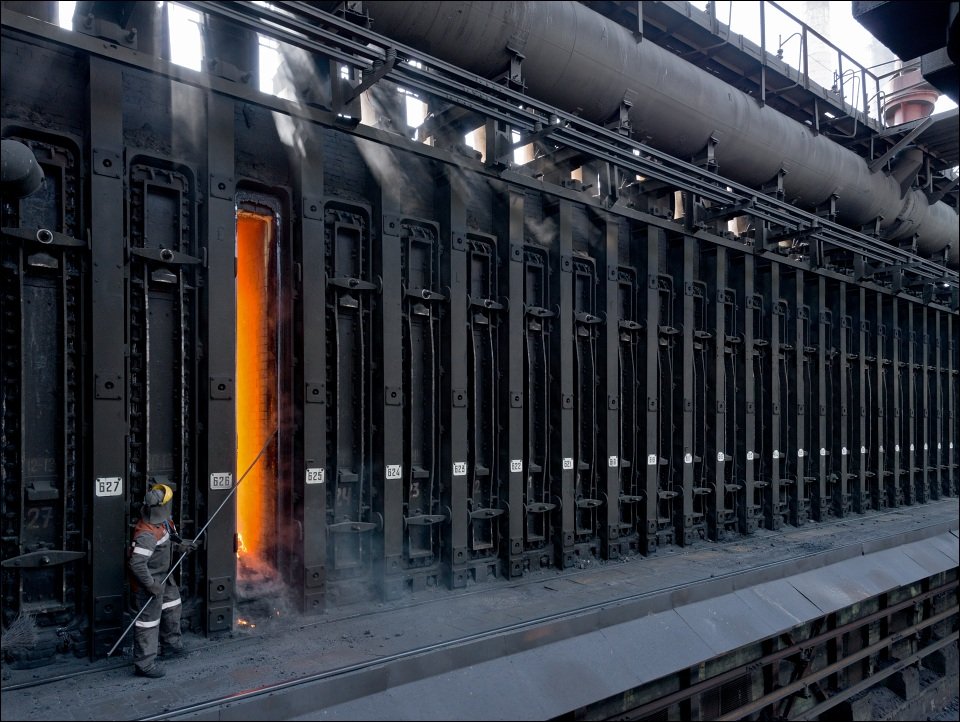

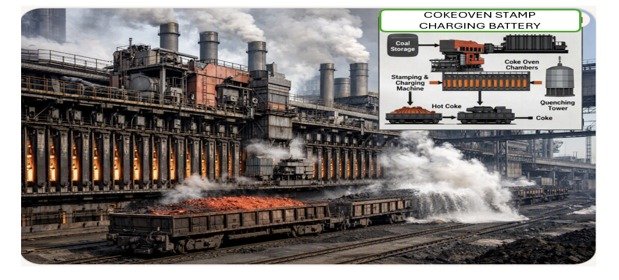

Coke Oven (CO)
including By-Product Plants
Reliable coke production is critical to blast furnace efficiency. Our specialists support complete coke oven and by-product recovery project.
Services include:
- Coke Oven Battery Operations
- Coal handling systems
- Charging and pushing machines
- Coke dry/wet quenching systems
- Coke screening and handling
- By-product recovery plants
- Refractory maintenance
- Mechanical, Electrical & Instrumentation maintenance
- Reliability improvement
- Environmental compliance support

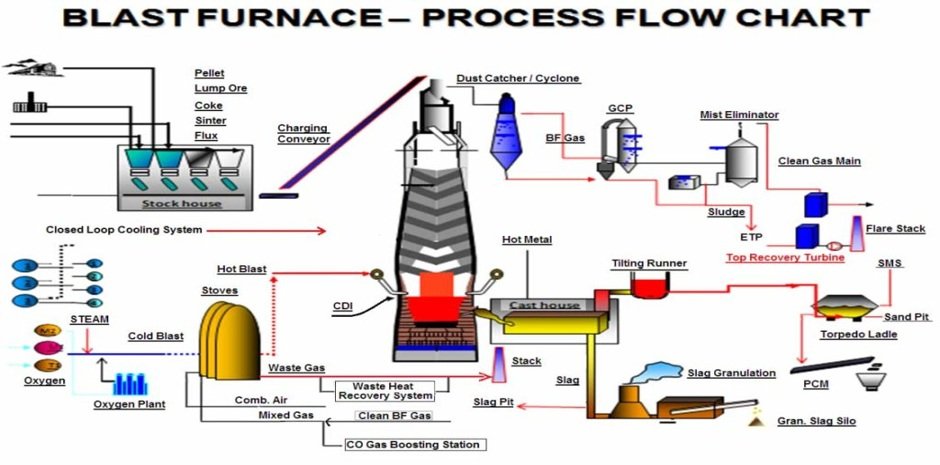

Blast Furnace (BF)
The Blast Furnace is the heart of ironmaking, where operational stability and process discipline are critical to achieving maximum productivity and hot metal quality.
Our experienced professionals have worked across various aspects of blast furnace operations, including commissioning, maintenance, process optimisation, and performance improvement.
Our project management expertise includes:
- Blast Furnace operation and process monitoring
- Burden distribution and charging systems
- Hot blast stove operations
- Pulverised Coal Injection (PCI) systems
- Cast house operations
- Hot metal and slag handling systems
- Tapping practice optimisation
- Cooling systems and water management
- Mechanical, electrical and instrumentation maintenance
- Shutdown and capital repair planning
- Productivity enhancement and fuel rate optimisation
Integrated Iron Making project experience:
The performance of an ironmaking complex depends on the seamless integration of every upstream process. Our multidisciplinary team understands the operational interdependence of Ore Handling Plants, Sinter Plants, Coke Ovens, and Blast Furnaces, enabling us to deliver coordinated project support for timely commissioning of the plant.
We support our clients through the project life cycle:
- Project execution and commissioning
- Plant operation and maintenance
- Equipment reliability improvement
- Process optimisation
- Plant modernisation and capacity enhancement
Your Partner in Iron Making Excellence
Our team combines engineering expertise, operational knowledge, and practical field experience to deliver dependable solutions for the iron-making industry.
Whether supporting a new project, optimising an existing facility, or managing long-term Operation & Maintenance activities, we are committed to helping our clients achieve higher productivity, improved equipment reliability, enhanced process efficiency, and sustainable operational performance.
Building Strong Foundations for Steel Through Engineering Excellence, Operational Reliability, and Proven Iron Making Expertise.
Conclusion
Iron making is an integrated sequence of raw material preparation, agglomeration, coke production, reduction and hot metal handling.
The complete iron-making chain encompasses raw material handling, sintering, pelletizing, coke making, blast furnace operation, gas cleaning, slag handling and hot metal transfer.
A consistent supply of suitably prepared raw materials, coke, fluxes and utilities is fundamental to stable iron-making performance and the production of hot metal suitable for downstream steel making.
